Control Panels

Basic Kit Hardware

8 - LEDs (2 white 220v, 2 yellow 110v, 2 blue 110v, 1 red 110v, and 1 green 220v)

1 - Alarm Buzzer LED

1 - Emergency Stop locking push button with NC Contact

1 - 3-Way Switches with NO Contacts for element select

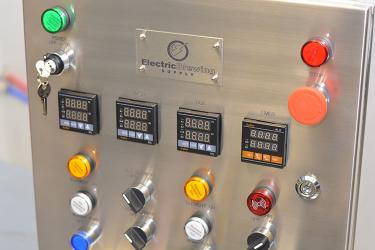

Hit the ground running with one of our complete control panels. Save your time and energy, and let Electric Brewing Supply help you get a jump on your electric brewery.   Due to the custom nature of these, delivery will varyAlways subject to prior orders. Average lead is 1-2 weeks Hit the ground running with one of our complete control panels. Save your time and energy, and let Electric Brewing Supply help you get a jump on your electric brewery. Electric Brewing Supply does the work so you don't have to. Featuring a fully configured 30a Control panel, ready to be mounted on the wall and plugged in. Protects your elements from accidental firing while brewing with an element off/on switch, shutting all power off to the element. Have a problem? Wort pumping all over the floor? Forgot a hose? The red mushroom stop button halts all functions, without cutting your brew day short. Specifications: Stainless steel enclosure with ID tagging via Engraving for easy clean up of door. Underside is tagged using black/white tags 30a, 240v electric, single phase (for safety, please use GFCI protection) 30a Twist lock power in supply to plain wire end or 4 prong washer/dryer plug, 6 ft wire Love 16C-2 PID Temperature control unit 1 L6-30 Flanged outlets for 240v Elements upto 5500w 1 L5-15 Flanged outlets for 120v for pumps such as Chugger or March, plugs included with panel 1 temperature probe inputs via XLR connection 1 RTD temp probe cables, with shielding and black poly sleeving. Color coded heat shrink. 1 RTD 1.5" long temperature probes with Stainless steel 1/2" NPT washer and locknuts for weldless mounting or in plumbing mounting Key style power switch for secure storage Locking mushroom button stops all power to elements and pumps What will you need aside from the panel to get going: 4500w or 5500w element in protective enclosure to attach to kettle Available here 30a GFCI protected, single phase 240v electric service to brew area. Electrician installed highly recommended. 1 Pump with plugs changed to twist locking L5-15 plug. Plugs are provided in package (jumper cable recommended to avoid voiding warranty) Kettle to your liking Once you have your panel in place, it is highly recommended that you run auto-tune to improve your brewing performance.

Let us help you get started. Note an update to switches, for simplicity sake and to provide you options in your build, we now ship both the 2-way toggle, the 2-way blue LED toggle, and the 2-way push button switches in any complete kit order. Let us help you get started. Build a complete 50a PID control panel using our complete package.  Here we provide the parts you need to build an electric brewing panel from the box out. The resulting panel should be a complete version of the panels we build and sell or you can customize further. We include extra 2-way switches and LED style switches allowing you to customize.  All the hardware and wire you may need to get your panel built is shipped in for one price. The kit includes: Basic Kit Hardware 8 - LEDs (2 white 220v, 2 yellow 110v, 2 blue 110v, 1 red 110v, and 1 green 220v) 1 - Alarm Buzzer LED 1 - Emergency Stop locking push button with NC Contact 2 - 2-Way Switches with NO Contacts for element (on-off) 2 - 2-Way Switches with NO Contacts for pumps (on-off) 2 - 2-Way Toggle style Blue LED Switches with NO/NC Contacts for pumps (on-off) 4 - 2-Way Switches with NO Contacts for alarms (on-off) (ships with only 1 for pre-cut panels) 1 - Additional NO Contacts for back of emergency stop 4 - Additional NC Contacts for back of 2-way switches 1 - Key toggle Switch for panel on/off 1 - MK2P-NS AC110 General Purpose Relay for safe power up 3 - 63a DIN Contactors w/ 110v Coils for main power and for element control 2 - 40a Solid State Relays for BCS control of elements and pumps 1 – Large pre-drilled and tapped heat sink for element SSRs 1 meter of DIN rail cut in 1/3m increments 25 - Terminal Blocks for wire from 6-24 awg 2 - New style 32a 2 pole DIN Rail Breaker 1 - New style 6a 1 pole DIN Rail Breaker 12 - Terminal block anchoring ends 8 - Terminal block end covers 6 - Terminal block separators 3 - Terminal block connecting bridge pieces Enclosure and outlets 1 – Enclosure (either painted or stainless steel) 2 – L6-30 Flanged outlets for elements 2 – L5-15 Flanged outlets for pumps 1 – C6375 flanged inlet for main power supply 2 – L5-15 plugs for pumps 1 – C6364C Connector for main power supply 3 – XLR Male connectors for temperature input Tags for panel include: Power / Off-On 4 x Alarm / Off-On (Only 1 for pre-cut design) Stop Boil Element / Off-On HLT Element / Off-On Water Pump / Off-On Wort Pump / Off-On 2 x HLT 2 x Boil Mash Water Pump Wort Pump HLT Probe MASH Probe Boil Probe 240v / 50a 120v / 6a Reset Start PID Temp controller, PID Timer and temperature probes 3 - Love 16C (SSR Output) PID Temperature control units 1 - LCT216 timer 3 - 1/2 inch MPT x 1-1/2 inch RTD100 Temperature Probes with 8/12 ft braided cables 3 - 1/2 inch Locknuts - for weldless mounting 3 - 1/2 inch washer and o-rings - for weldless mounting 3 – XLR Female connectors for temperature probes 36 ft of 1/8 inch braided poly sleeve for temperature probes 3 cuts of 4 inch x 1/8 inch heat shrink tubing for temperature probes Wiring and wire fittings 6 ft Range style main power cable with 14-50 end 15 ft of black 6 gauge wire 15 ft of black 10 gauge wire 15 ft of red 10 gauge wire 10 ft of green 10 gauge wire 30 ft of black 14 gauge wire 20 ft of white 14 gauge wire 4 ft of yellow 14 gauge wire 4 ft of orange 14 gauge wire 4 ft of blue 14 gauge wire 4 ft of purple 14 gauge wire 12 ft of pink 14 gauge wire 12 ft of pink 14 gauge wire 30 ft of black 18 gauge wire 18 ft of yellow 18 gauge wire 28 ft of orange 18 gauge wire 30 ft of white 18 gauge wire 4 ft of tan 18 gauge wire 10 - #10 Yellow Spade connectors for 10ga wire connections on SSR relays 100 - #6 Blue Spade Connectors for most 110v wiring throughout the panel 50 - #6 Red spade connectors for the low voltage and temp probe wiring 5 - #10 Blue ring connectors for grounding wire on enclosure posts *** OPTIONAL UPGRADES *** Pre-cut painted enclosure ($50) - highly recommend planning to paint upon receipt. Stainless steel enclosure (add $50) Stainless steel Pre-Cut enclosure as pictured (add $125) Note that pre-cut enclosure typically can add 3-4 days to delivery as portions are made to order  Package also includes a printed copy of our wiring guide. Tools you will need include: Wire Cutters Wire strippers Crimping tools for spade and ring connectors Phillips screw driver(s) Flat head screw driver(s) Zip ties and zip tie bases (optional) Soldering Iron for temp probe assembly If you are cutting your control panel 7/8" Hole saw or step bit for LEDs and switches 3/4" hole saw for XLR panel connectors 1-1/2" hole saw for flanged pump outlets 2-1/8" hole saw for flanged element outlets 2-1/4" hole saw for flanged inlet for power supply Dremel or other rotary tool for cleaning up edges Angle grinder or rotary tool for cutting heat sink hole(s) in top Sand paper and paint always recommended for painted enclosures.

Kit design for BCS 460. Features circuit structure to control 4 (upto 5500w) elements, simultaneously, as well as 2 pumps. Updated drawing as of 11/2014 View the wiring schematic HERE Kit includes all pieces necessary to build a BCS 460 controlled electric panel with 4 220v elements, operating 2 simultaneously, and 2 pumps. Kit includes: 14 - LEDs (4 white 220v, 2 white 110v, 4 yellow 110v, 2 blue 110v, 1 red 110v, and 1 green 220v) 1 - Emergency Stop locking push button with NC Contact 4 - 3-Way Switches with NO Contacts for element select and pumps (on-off-auto) 9 - Additional NO Contacts for back of 3 way switches 1 - Key toggle Switch for panel on/off 1 - 63a DIN Contactors w/ 110v Coils for main power supply 4 - 25a DIN Contactors w/ 110v Coils for element power 6 - 40a Solid State Relays for BCS control of elements and pumps 1 - Large heatsink, drilled and tapped (New Style) 1 meter of DIN rail, cut in either 1/3s (fits enclosure perfectly) or 1/2 30 - Terminal Blocks for wire from 6-24 awg 4 - New style 32a 2 pole DIN Rail Breaker 1 - New style 6a 1 pole DIN Rail Breaker 8 - Terminal block anchoring ends 4 - Terminal block end covers 4 - Terminal block seperators 3 - Terminal block connecting bridge pieces 1 - Wiring diagram with our recommended design The panel as configured, WILL fit in a 16x16x8 control panel enclosure. Updated drawing as of 11/2014 View the wiring schematic HERE

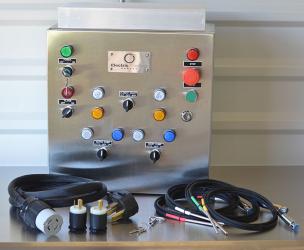

Hit the ground running with one of our complete control panels. Save your time and energy, and let Electric Brewing Supply help you get a jump on your electric brewery.   Due to the custom nature of these, delivery will varyAlways subject to prior orders. Average lead is approx 4-6 weeks, during busier seasons this can stretch to 8. Hit the ground running with one of our complete control panels. Save your time and energy, and let Electric Brewing Supply help you get a jump on your electric brewery. Electric Brewing Supply does the work so you don't have to. Featuring a fully configured 50a Control panel, ready to be mounted on the wall and plugged in. Have a problem? Wort pumping all over the floor? Forgot a hose? The red mushroom stop button halts all functions, without cutting your brew day short. Each panel features an interlocking relay, for safety from accidental power up of elements or dry pumping. When the e-stop or key switch are turned on, this relay reacts by either shutting off power to the pumps and elements (therefore appear dead) or it allows power to flow. Additionally, this relay works in conjunction with the e-stop switch, and therefore, protects the hardware even while still leaving you the ability to take corrective action on the still powered PIDs. Specifications: Stainless steel enclosure with ID tagging via Engraving for easy clean up of door. Underside is tagged using black/white tags 50a, 240v electric, single phase (for safety, please use GFCI protection) 50a Twist lock power in supply to plain wire end or 4 prong washer/dryer plug, 6 ft wire Love 16C PID Controllers with manual mode enabled for boil with Love LCT216 Timer 2 L6-30 Flanged outlets for 240v Elements upto 5500w 2 L5-15 Flanged outlets for 120v for pumps such as Chugger or March, plugs included with panel 3 temperature probe inputs via XLR connection 3 RTD temp probe cables, with shielding and black poly sleeving. Color coded heat shrink. 3 RTD 1.5" long temperature probes with Stainless steel 1/2" NPT washer and locknuts for weldless mounting or in plumbing mounting Key style power switch for secure storage Locking mushroom button stops all power to elements and pumps What will you need aside from the panel to get going: 4500w or 5500w element in protective enclosure to attach to kettle Available here 50a GFCI protected, single phase 240v electric service to brew area. Electrician installed highly recommended. 1-2 Pumps with plugs changed to twist locking L5-15 plug. Plugs are provided in package (jumper cable recommended to avoid voiding warranty) Kettles to your liking Once you have your panel in place, it is highly recommended that you run auto-tune to improve your brewing performance.   More regarding the PID Units The compact Series 16C Temperature Controller offers accurate temperature measurement and control in a 1/16 DIN package. Designed for direct or reverse acting (cooling or heating) control, the Series 16C can be programmed for simple ON/OFF or more complex PID control functions. PID control is supported with manual or auto-tuning. The Series 16C accepts a variety of thermocouple and RTD inputs. Process value and setpoint value are displayed simultaneously on the large dual LED. Auto-tuning, engineering units (°F or °C), and alarm status is also indicated on the faceplate. Two alarm outputs are included on the unit with 12 preprogrammed alarm functions.

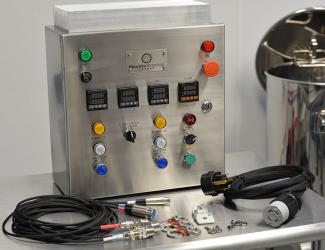

Hit the ground running with one of our complete control panels. Save your time and energy, and let Electric Brewing Supply help you get a jump on your electric brewery.   Due to the custom nature of these, delivery will varyAlways subject to prior orders. Average lead is approx 4-6 weeks, during busier seasons this can stretch to 8. Now available in 220v variants for Europe and Australia Hit the ground running with one of our complete control panels. Save your time and energy, and let Electric Brewing Supply help you get a jump on your electric brewery. Electric Brewing Supply does the work so you don't have to. Featuring a fully configured 30a Control panel, ready to be mounted on the wall and plugged in. Protects your elements from accidental firing while brewing with a selector switch controlling which element is controlled. Have a problem? Wort pumping all over the floor? Forgot a hose? The red mushroom stop button halts all functions, without cutting your brew day short. Each panel features an interlocking relay, for safety from accidental power up of elements or dry pumping. When the e-stop or key switch are turned on, this relay reacts by either shutting off power to the pumps and elements (therefore appear dead) or it allows power to flow. Additionally, this relay works in conjunction with the e-stop switch, and therefore, protects the hardware even while still leaving you the ability to take corrective action on the still powered PIDs. Specifications: Stainless steel enclosure with ID tagging via Engraving for easy clean up of door. Underside is tagged using black/white tags 30a, 240v electric, single phase (for safety, please use GFCI protection) 30a Twist lock power in supply to plain wire end or 4 prong washer/dryer plug, 6 ft wire Love 16C PID Controllers with manual mode enabled for boil with Love LCT216 Timer 2 L6-30 Flanged outlets for 240v Elements upto 5500w 2 L5-15 Flanged outlets for 120v for pumps such as Chugger or March, plugs included with panel 3 temperature probe inputs via XLR connection 3 RTD temp probe cables, with shielding and black poly sleeving. Color coded heat shrink. 3 RTD 1.5" long temperature probes with Stainless steel 1/2" NPT washer and locknuts for weldless mounting or in plumbing mounting Key style power switch for secure storage Locking mushroom button stops all power to elements and pumps What will you need aside from the panel to get going: 4500w or 5500w element in protective enclosure to attach to kettle Available here 30a GFCI protected, single phase 240v electric service to brew area. Electrician installed highly recommended. 1-2 Pumps with plugs changed to twist locking L5-15 plug. Plugs are provided in package (jumper cable recommended to avoid voiding warranty) Kettles to your liking Once you have your panel in place, it is highly recommended that you run auto-tune to improve your brewing performance.   More regarding the PID Units The compact Series 16C Temperature Controller offers accurate temperature measurement and control in a 1/16 DIN package. Designed for direct or reverse acting (cooling or heating) control, the Series 16C can be programmed for simple ON/OFF or more complex PID control functions. PID control is supported with manual or auto-tuning. The Series 16C accepts a variety of thermocouple and RTD inputs. Process value and setpoint value are displayed simultaneously on the large dual LED. Auto-tuning, engineering units (°F or °C), and alarm status is also indicated on the faceplate. Two alarm outputs are included on the unit with 12 preprogrammed alarm functions.

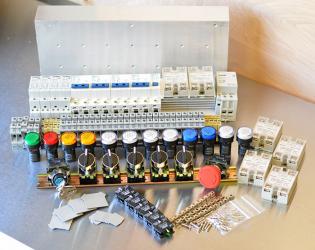

Let us help you get started on you endeavor to build an electric brewery. As we build these as well, we have all the parts you need to build your brewery in one location. Give us a few days to assemble and package all the parts you need to build your own BCS brewery. Save yourself time and effort, while also reducing the tools needed to build your brewery. Usual lead time is 3-5 days, as each package is made to order Let us help you get started. Build a complete 50a BCS control panel using our complete package.  Here we provide the parts you need to build an electric brewing panel from the box out. The resulting panel should be a near complete version of the panels we build and sell.  All the hardware and wire you may need to get your panel built. Updated drawing as of 11/2014 View the wiring schematic HERE The kit includes: Basic Kit Hardware 10 - LEDs (2 white 220v, 2 white 110v, 2 yellow 110v, 2 blue 110v, 1 red 110v, and 1 green 220v) 1 - Emergency Stop locking push button with NC Contact 3 - 3-Way Switches with NO Contacts for element select and pumps (on-off-auto) 7 - Additional NO Contacts for back of 3 way switches 1 - Key toggle Switch for panel on/off 3 - 63a DIN Contactors w/ 110v Coils for main power & element control 2 - 40a Solid State Relays for BCS control of elements and pumps 1 - 12v Power supply unit for SPDT Relay board 1 - Triple relay, SPDT Relay board for pumps and arlam 1 – Large pre-drilled and tapped heat sink for element SSRs 1 meter of DIN rail cut in 1/3m increments 25 - Terminal Blocks for wire from 6-24 awg 1 - New style 32a 2 pole DIN Rail Breaker 1 - New style 6a 1 pole DIN Rail Breaker 8 - Terminal block anchoring ends 4 - Terminal block end covers 4 - Terminal block separators 3 - Terminal block connecting bridge pieces Enclosure and outlets 1 – Enclosure either pre-cut and drilled or not 2 – L6-30 Flanged outlets for elements 2 – L5-15 Flanged outlets for pumps 1 – L14-30 flanged inlet for main power supply 2 – L5-15 plugs for pumps 1 –L14-30C Connector for main power supply 4 – XLR Male connectors for temperature input 1 – Panel Network connector Tags for panel include: Power / Off-On Alarm / Off-On Stop HLT Element / Auto-Off-On Boil Element / Auto-Off-On Water Pump / Auto-Off-On Wort Pump / Auto-Off-On HLT Boil Water Pump Wort Pump HLT Probe MASH Probe Boil Probe KO Probe 240v / 30a 120v / 6a BCS Controller and temperature probes BCS 460 Temperature Control Unit DIN Rail Outlet 4 - 4 inch or 6 inch Temperature Probes 4 - 1/4" inch to 1/2" inch MNPT Compression fittings 4 - 1/2" inch Locknuts 4 - 1/2" inch washer and o-rings 4 – XLR Female connectors for temperature probes 30 ft of 1/8 inch braided poly sleeve for temperature probes 4 cuts of 3 1/8 inch heat shrink tubing for temperature probes M12 probes will ship with M12 connector on the probe end, and a bare end for XLR on the other end Wiring and wire fittings 6 ft Range style main power cable 15 ft of black 10 gauge wire 15 ft of red 10 gauge wire 15 ft of green 10 gauge wire 30 ft of black 14 gauge wire 4 ft of red 14 gauge wire 20 ft of white 14 gauge wire 4 ft of yellow 14 gauge wire 4 ft of orange 14 gauge wire 4 ft of gray 14 gauge wire 2 ft or blue 14 gauge wire 2 ft of purple 14 gauge wire 16 ft of red 18 gauge wire 12 ft of black 18 gauge wire 8 ft of blue 18 gauge wire 8 ft of purple 18 gauge wire 4 ft of gray 18 gauge wire 4 ft of tan 18 gauge wire 16 ft of yellow 18 gauge wire 16 ft of orange 18 gauge wire 20 ft of white 18 gauge wire 10 - #10 Yellow Spade connectors for 10ga wire connections on SSR relays 100 - #6 Blue Spade Connectors for most 110v wiring throughout the panel 50 - #6 Red spade connectors for the low voltage and temp probe wiring 5 - #10 Blue ring connectors for grounding wire on enclosure posts *wire cuts may be subject to updates as we simplify the process.   *** BCS Temperature Controller Options*** BCS460 with upto 4 temperature inputs BCS462 with upto 8 temperature inputs *** Enclosure Information *** Painted Enclosure is included. The included enclosures has no cuts made to the box requiring and therefore allowing you to design and build your system to your preference. Pre-cut Painted Enclosures uses our current Assembled enclosure layout, is CNC cut out of the painted box and then we drill and tap all necessary holes for easy hardware mounting. The paint on the enclosure is likely to have some marks and may even be loose at some edges; we highly recommend you plan on sanding and painting with your choice of paint. Stainless enclosure. Same as the standard painted option, but instead we send a 304 Stainless enclosure.   Pre-cut Stainless enclosure is the equivalent of an enclosure straight from our cut stack for the assembled panels, these are cut, cleaned, drilled and tapped. All kits include a printed copy of our wiring guide book.   Tools you will need include: Wire Cutters Wire strippers Crimping tools for spade and ring connectors Phillips screw driver(s) Flat head screw driver(s) Zip ties and zip tie bases (optional) Labeler or other means to tag wires If you are cutting your control panel 7/8" Hole saw or step bit for LEDs and switches 3/4" hole saw for XLR panel connectors 1-1/2" hole saw for flanged pump outlets 2-1/8" hole saw for flanged element outlets Dremel or other rotary tool for cleaning up edges Angle grinder or rotary tool for cutting heat sink hole(s) in top Sand paper and paint recommended

Let us help you get started on you endeavor to build an electric brewery. As we build these as well, we have all the parts you need to build your brewery in one location. Give us a few days to assemble and package all the parts you need to build your own BIAB brewery. Save yourself time and effort, while also reducing the tools needed to build your brewery. Usual lead time is 3-5 days, as each package is made to order Let us help you get started. The kit includes: Basic Kit Hardware 4 - LEDs (1 white 220v, 1 blue 110v, 1 red 110v, and 1 green 220v) 1 - Emergency Stop locking push button with NC Contact 1 - 2-Way Switches with NO Contact for pump (off-on) 1 - 2-Way Yellow/Orange LED Toggle switch for element contactor (off-on) 1 - Additional NO Contacts for back of 3 way switches 1 - Key toggle Switch for panel on/off 2 - 63a DIN Contactors w/ 110v Coils for main power & element control 1 - 40a Solid State Relays for control of element 1 – Small external pre-drilled and tapped heat sink for element SSR 1 - 1/2m cut of DIN rail or pre-installed piece in pre-cut enclosures 8 - Terminal Blocks for wire from 6-24 awg 1 - New style 32a 2 pole DIN Rail Breaker 1 - New style 6a 1 pole DIN Rail Breaker 4 - Terminal block anchoring ends 2 - Terminal block end covers 2 - Terminal block separators 1 - Terminal block connecting bridge pieces Enclosure and outlets 1 – Enclosure either pre-cut and drilled or not 1 – L6-30 Flanged outlets for elements 1 – L5-15 Flanged outlets for pumps 1 – L14-30 flanged inlet for main power supply 1 – L5-15 plugs for pumps 1 –L14-30C Connector for main power supply 1 – XLR Male connectors for temperature input Tags for panel include: Power / Off-On Stop Element / Off-On Element Pump / Off-On Pump Temp Probe 240v / 30a 120v / 6a Temperature Controller and probes Electric Brewing Supply EBS101 PID Controller 1 - 1/2" MPT to 1-1/2" long Temperature Probe 1 - 1/2" NPT Locknuts 1 - 1/2" NPT washer and o-rings 1 – XLR Female connectors for temperature probes Wiring and wire fittings 6 ft Range style main power cable 8 ft of black 10 gauge wire 8 ft of red 10 gauge wire 5 ft of green 10 gauge wire 16 ft of black 14 gauge wire 4 ft of red 14 gauge wire 8 ft of white 14 gauge wire 4 ft of yellow 14 gauge wire 4 ft or blue 14 gauge wire 12 ft of red 18 gauge wire 12 ft of yellow 18 gauge wire 4 ft of white 18 gauge wire 10 - #10 Yellow Spade connectors for 10ga wire connections on SSR relays 100 - #6 Blue Spade Connectors for most 110v wiring throughout the panel 50 - #6 Red spade connectors for the low voltage and temp probe wiring 5 - #10 Blue ring connectors for grounding wire on enclosure posts *wire cuts may be subject to updates as we simplify the process.   *** Enclosure Information *** Painted Enclosure is included. The included enclosures has no cuts made to the box requiring and therefore allowing you to design and build your system to your preference. Pre-cut Painted Enclosures uses our current Assembled enclosure layout, is CNC cut out of the painted box and then we drill and tap all necessary holes for easy hardware mounting. The paint on the enclosure is likely to have some marks and may even be loose at some edges; we highly recommend you plan on sanding and painting with your choice of paint. Stainless enclosure. Same as the standard painted option, but instead we send a 304 Stainless enclosure.   Pre-cut Stainless enclosure is the equivalent of an enclosure straight from our cut stack for the assembled panels, these are cut, cleaned, drilled and tapped. All kits include a printed copy of our wiring guide book.   Tools you will need include: Wire Cutters Wire strippers Crimping tools for spade and ring connectors Phillips screw driver(s) Flat head screw driver(s) Zip ties and zip tie bases (optional) Labeler or other means to tag wires If you are cutting your control panel 7/8" Hole saw or step bit for LEDs and switches 3/4" hole saw for XLR panel connectors 1-1/2" hole saw for flanged pump outlets 2-1/8" hole saw for flanged element outlets Dremel or other rotary tool for cleaning up edges Angle grinder or rotary tool for cutting heat sink hole(s) in top Sand paper and paint recommended

Type a description for this product here...   Will come shortly

Hit the ground running with one of our complete control panels. Save your time and energy, and let Electric Brewing Supply help you get a jump on your electric brewery.   Include your wireless network information with your order, and we'll configure the brewery to connect for you.   Due to the custom nature of these, delivery will varyAlways subject to prior orders. Average lead is approx 4-6 weeks, during busier seasons this can stretch to 8. Hit the ground running with one of our complete control panels. Save your time and energy, and let Electric Brewing Supply help you get a jump on your electric brewery. Electric Brewing Supply does the work so you don't have to. Featuring a fully configured 50a Control panel, ready to be mounted on the wall and plugged in. Design features independent control of pumps and elements, either by BCS controller or manually. Have a problem? Wort pumping all over the floor? Forgot a hose? The red mushroom stop button halts all functions, without cutting your brew day short. Specifications: Stainless Steel enclosure 50a, 240v electric, single phase (for safety, please use GFCI protection) 50a Twist lock power in supply to plain wire end or 4 prong washer/dryer plug, 6 ft wire Embedded Control Concepts BCS-460 installed 2 L6-30 Flanged outlets for 240v Elements upto 5500w 2 L5-15 Flanged outlets for 120v for pumps such as Chugger or March, plugs included with panel 4 temperature probe outlets, XLR style, for rigid easy connection 3 4" long temperature probes, 1 6" temperature probe, with Stainless steel 1/4" to 1/2" NPT compression fitting hardware 1 Cat5e Network adapter connection to communicate with network (wireless available) Key style power switch for secure storage Locking mushroom button stops all power to elements and pumps Audible Alarm buzzer with switched on-off ability Push-button input for easy process step input and control   Panel ships with pre-programmed brew day that can in turn be modified to your own brew steps What will you need aside from the panel to get going: 4500w or 5500w element in protective enclosure to attach to kettle Available here 50a GFCI protected, single phase 240v electric service to brew area. Electrician installed highly recommended. 1-2 Pumps with plugs changed to twist locking L5-15 plug. Plugs are provided in package Kettles to your liking Available Add-on Options Wireless network adapter creates dedicated wireless network for BCS that can then be connected to your home network (add $75) 2 Stainless steel (1/2" NPT) float switches with mounting hardware for added safety for elements (add $120)   More on BCS Web-based User Interface The BCS series' user interface is all web based. Monitor and control temperatures and processes on your browser from any computer (or smartphone) anywhere. Check out some Screenshots. Temperature Sensor Inputs The BCS-460 allows up to four independent temperature sensors to be monitored simultaneously. Inputs can be any NTC thermistor based sensor with a 10Kohm ambient reading. Use our sensors, or purchase/build your own. Just set the temperature coefficients that are provided by the sensor manufacturer into the BCS-460, or calculate them based on experimental data. Inputs / Outputs Along with the four temperature sensor inputs, the BCS-460 provides four 5V discrete inputs, and four web-based user inputs. All inputs can trigger controller responses. Six low-current 5V discrete outputs are provided for relay control. Each output can be set to be controlled directly, differentially by a temperature input, or under complete PID control. Affordable expansion cards are available to increase the number of digital inputs and outputs. The Digi16 expansion card adds 12 outputs and 4 inputs. The interface supports upto 4 Digi16 expansion cards, for a total of 54 outputs and 20 inputs! Advanced Data Logging Data is logged internally in the device, and displayed on your browser, or saved as a text file. The BCS-460 supports internal logging of four signals up to 4k samples each. The user can set the frequency of the samples anywhere from 1 second to 6 hours, resulting in trace lengths anywhere from 1.1 hours to 2.8 years long. Programmable Processes A revolutionary State Machine interface allows the user to program with simple and intuitive rules, giving the controller the ability to exhibit extremely complex behavior. The BCS-460 allows up to eight independent processes, each with eight states.  Check out the documentation for programming examples. Open Interface API The control system from ECC utilizes a simple HTTP GET/POST mechanism to control and monitor the unit. The protocol is completely open and documented, allowing users the ability to develop third-party interfaces. Does your application require a unique GUI, or if would like to have your own data logging/graphing application? Want to link multiple BCS systems together and have them all controlled from a unified interface? The possibilities are endless. Check out our Forum to see what the community is offering. Questions? See our Frequently Asked Questions, post in the forum, or contact us directly. http://www.embeddedcc.com/wiki/index.php?title=FAQ http://forum.embeddedcc.com/ http://www.embeddedcc.com/index.php/contacts     This product is intended for experimental home use only. No warranty or guarantee of suitability (express or implied) is given for commercial use of this product.   Product warranties may be revoked if it is determined that product faults are due to misuse, abuse, or improper connection. Buyer agrees that Electric Brewing Supply, LLC shall not be liable for either specific performance or any liability, loss, tampering, abuse, damage, including consequential and incidental damages, arising out of buyer's purchase of the equipment, or any defects in the equipment.

Let us help you get started on you endeavor to build an electric brewery. As we build these as well, we have all the parts you need to build your brewery in one location. Give us a few days to assemble and package all the parts you need to build your own BCS brewery. Save yourself time and effort, while also reducing the tools needed to build your brewery. Usual lead time is 3-5 days, as each package is made to order Pictured 50a 2 element kit Let us help you get started. Build a complete 50a 2-element (1/2bbl, 15gallon) BCS control panel using our complete package. Here we provide the parts you need to build an electric brewing panel from the box out. The resulting panel should be a near complete version of the panels we build and sell.  All the hardware and wire you may need to get your panel built. Some build pictures can be found on our Flickr Page More details and how to guide can be found at http://learn.ebrew.supply/ Updated drawing as of 11/2014 View the wiring schematic HERE The kit includes: Basic Kit Hardware 10 - LEDs (2 white 220v, 2 white 110v, 2 yellow 110v, 2 blue 110v, 1 red 110v, and 1 green 220v) 1 - Emergency Stop locking push button with NC Contact 4 - 3-Way Switches with NO Contacts for element select and pumps (on-off-auto) 9 - Additional NO Contacts for back of 3 way switches 1 - Key toggle Switch for panel on/off 3 - 63a DIN Contactors w/ 110v Coils for main power & element control 2 - 40a Solid State Relays for BCS control of elements 1 - 12v Power supply unit for SPDT Relay board 1 - Triple relay, SPDT Relay board for pumps and arlam 1 – Large pre-drilled and tapped heat sink for element SSRs 1 meter of DIN rail cut in 1/3m increments 25 - Terminal Blocks for wire from 6-24 awg 2 - New style 32a 2 pole DIN Rail Breaker 1 - New style 6a 1 pole DIN Rail Breaker 14 - Terminal block anchoring ends 4 - Terminal block end covers 4 - Terminal block separators 3 - Terminal block connecting bridge pieces Enclosure and outlets 1 – Enclosure either pre-cut and drilled or not 2 – L6-30 Flanged outlets for elements 2 – L5-15 Flanged outlets for pumps 1 – C6375 flanged inlet for main power supply 2 – L5-15 plugs for pumps 1 – C6364C Connector for main power supply 4 – XLR Male connectors for temperature input 1 – Panel Network connector Tags for panel include: Power / Off-On Alarm / Off-On Stop HLT Element / Auto-Off-On Boil Element / Auto-Off-On Water Pump / Auto-Off-On Wort Pump / Auto-Off-On HLT Boil Water Pump Wort Pump HLT Probe MASH Probe Boil Probe KO Probe 240v / 50a 120v / 15a BCS Controller and temperature probes BCS 460 Temperature Control Unit DIN Rail Outlet 4 - 4 inch or 6 inch Temperature Probes 4 - 1/4" inch to 1/2" inch MNPT Compression fittings 4 - 1/2" inch Locknuts 4 - 1/2" inch washer and o-rings 4 – XLR Female connectors for temperature probes 30 ft of 1/8 inch braided poly sleeve for temperature probes 4 cuts of 3 1/8 inch heat shrink tubing for temperature probes M12 probes will ship with M12 connector on the probe end, and a bare end for XLR on the other end Wiring and wire fittings 6 ft Range style main power cable 12 ft of black 6 gauge wire 15 ft of black 10 gauge wire 15 ft of red 10 gauge wire 15 ft of green 10 gauge wire 30 ft of black 14 gauge wire 4 ft of red 14 gauge wire 20 ft of white 14 gauge wire 4 ft of yellow 14 gauge wire 4 ft of orange 14 gauge wire 4 ft of gray 14 gauge wire 2 ft or blue 14 gauge wire 2 ft of purple 14 gauge wire 16 ft of red 18 gauge wire 12 ft of black 18 gauge wire 8 ft of blue 18 gauge wire 8 ft of purple 18 gauge wire 4 ft of gray 18 gauge wire 4 ft of tan 18 gauge wire 16 ft of yellow 18 gauge wire 16 ft of orange 18 gauge wire 20 ft of white 18 gauge wire 10 - #10 Yellow Spade connectors for 10ga wire connections on SSR relays 100 - #6 Blue Spade Connectors for most 110v wiring throughout the panel 50 - #6 Red spade connectors for the low voltage and temp probe wiring 5 - #10 Blue ring connectors for grounding wire on enclosure posts *wire cuts may be subject to updates as we simplify the process. *** BCS Temperature Controller Options*** BCS460 with upto 4 temperature inputs BCS462 with upto 8 temperature inputs *** Enclosure Information *** Painted Enclosure is included. The included enclosures has no cuts made to the box requiring and therefore allowing you to design and build your system to your preference. Pre-cut Painted Enclosures uses our current Assembled enclosure layout, is CNC cut out of the painted box and then we drill and tap all necessary holes for easy hardware mounting. The paint on the enclosure is likely to have some marks and may even be loose at some edges; we highly recommend you plan on sanding and painting with your choice of paint. Stainless enclosure. Same as the standard painted option, but instead we send a 304 Stainless enclosure.   Pre-cut Stainless enclosure is the equivalent of an enclosure straight from our cut stack for the assembled panels, these are cut, cleaned, drilled and tapped. All kits include a printed copy of our wiring guide book. Tools you will need include: Wire Cutters Wire strippers Crimping tools for spade and ring connectors Phillips screw driver(s) Flat head screw driver(s) Zip ties and zip tie bases (optional) Labeler or other means to tag wires If you are cutting your control panel 7/8" Hole saw or step bit for LEDs and switches 3/4" hole saw for XLR panel connectors 1-1/2" hole saw for flanged pump outlets 2-1/8" hole saw for flanged element outlets Dremel or other rotary tool for cutting network panel inlet Sand paper and paint recommended for painted enclosures. Scotch Bright Scrubbers for the stainless enclosures.

Hit the ground running with one of our complete control panels. Save your time and energy, and let Electric Brewing Supply help you get a jump on your electric brewery.   Include your wireless network information with your order, and we'll configure the brewery to connect for you.   Due to the custom nature of these, delivery will varyAlways subject to prior orders. Average lead is approx 4-6 weeks, during busier seasons this can stretch to 8. Now available in 220v variants for Europe and Australia Hit the ground running with one of our complete control panels. Save your time and energy, and let Electric Brewing Supply help you get a jump on your electric brewery. Electric Brewing Supply does the work so you don't have to. Featuring a fully configured 30a Control panel, ready to be mounted on the wall and plugged in. Design features independent control of pumps, either by BCS controller or manually. Elements are controlled only by BCS, with a selector switch controlling which element is controlled, for added safety. Have a problem? Wort pumping all over the floor? Forgot a hose? The red mushroom stop button halts all functions, without cutting your brew day short. Specifications: 30a, 240v electric, single phase (for safety, please use GFCI protection) 30a Twist lock power in supply to plain wire end or 4 prong washer/dryer plug, 6 ft wire Embedded Control Concepts BCS-460 installed (some basic configuration available) 2 L6-30 Flanged outlets for 240v Elements upto 5500w , plugs included with panel* 2 L5-15 Flanged outlets for 120v for pumps such as Chugger or March, plugs included with panel 4 temperature probe outlets, Cat5 style, for easy connection 4 4" long temperature probes with Stainless steel 1/4" to 1/2" NPT compression fitting 1 Cat5e Network adapter connection to communicate with network (wireless client available) Key style power switch for secure storage Locking mushroom button stops all power to elements and pumps   What will you need aside from the panel to get going: 4500w or 5500w element in protective enclosure to attach to kettle Available here 30a GFCI protected, single phase 240v electric service to brew area. Electrician installed highly recommended. 1-2 Pumps with plugs changed to twist locking L5-15 plug. Plugs are provided in package Kettles to your liking More on BCS Web-based User Interface The BCS series' user interface is all web based. Monitor and control temperatures and processes on your browser from any computer (or smartphone) anywhere. Check out some Screenshots. Temperature Sensor Inputs The BCS-460 allows up to four independent temperature sensors to be monitored simultaneously. Inputs can be any NTC thermistor based sensor with a 10Kohm ambient reading. Use our sensors, or purchase/build your own. Just set the temperature coefficients that are provided by the sensor manufacturer into the BCS-460, or calculate them based on experimental data. Inputs / Outputs Along with the four temperature sensor inputs, the BCS-460 provides four 5V discrete inputs, and four web-based user inputs. All inputs can trigger controller responses. Six low-current 5V discrete outputs are provided for relay control. Each output can be set to be controlled directly, differentially by a temperature input, or under complete PID control. Affordable expansion cards are available to increase the number of digital inputs and outputs. The Digi16 expansion card adds 12 outputs and 4 inputs. The interface supports upto 4 Digi16 expansion cards, for a total of 54 outputs and 20 inputs! Advanced Data Logging Data is logged internally in the device, and displayed on your browser, or saved as a text file. The BCS-460 supports internal logging of four signals up to 4k samples each. The user can set the frequency of the samples anywhere from 1 second to 6 hours, resulting in trace lengths anywhere from 1.1 hours to 2.8 years long. Programmable Processes A revolutionary State Machine interface allows the user to program with simple and intuitive rules, giving the controller the ability to exhibit extremely complex behavior. The BCS-460 allows up to eight independent processes, each with eight states.  Check out the documentation for programming examples. Open Interface API The control system from ECC utilizes a simple HTTP GET/POST mechanism to control and monitor the unit. The protocol is completely open and documented, allowing users the ability to develop third-party interfaces. Does your application require a unique GUI, or if would like to have your own data logging/graphing application? Want to link multiple BCS systems together and have them all controlled from a unified interface? The possibilities are endless. Check out our Forum to see what the community is offering. Questions? See our Frequently Asked Questions, post in the forum, or contact us directly. http://www.embeddedcc.com/wiki/index.php?title=FAQ http://forum.embeddedcc.com/ http://www.embeddedcc.com/index.php/contacts     This product is intended for experimental home use only. No warranty or guarantee of suitability (express or implied) is given for commercial use of this product.   Product warranties may be revoked if it is determined that product faults are due to misuse, abuse, or improper connection. Buyer agrees that Electric Brewing Supply, LLC shall not be liable for either specific performance or any liability, loss, tampering, abuse, damage, including consequential and incidental damages, arising out of buyer's purchase of the equipment, or any defects in the equipment.

Kit design for BCS Controlled, 3 burner gas brewery setupKit includes pieces the basic pieces to build an effective control panel for up to 3 Honeywell or similar gas valves in a gas brewery. Panel runs on a standard home 120v circuit. Kit includes: 12 - LEDs (3 white 110v, 2 white 24v, 3 yellow 110v, 2 blue 110v, 1 red 110v, and 1 green 110v) 1 - Emergency Stop locking push button with NC Contact 5 - 3-Way Switches with 2 NO Contact. For power to pumps 11 - Additional NO Contacts 1 - Key toggle Switch for panel on/off 1 - 25a DIN Rail mount Contactor for main power control 1 - 3 relay, 10a SPDT relay boards for safe on/off control of gas valves, 12v coil 1 - 2 relay, 10a SPDT relay boards for small foot print, pump control, 12v coil 1 - 12v 1.25a DIN-Rail Power Supply for power for SPDT coils 1 - 120vac to 24vac power transformer for gas valve power 3 pcs - 1/3 meter cuts of DIN rail 15 - Terminal Blocks for wire from 6-24 awg 8 - Terminal block anchoring ends 4 - Terminal block end covers 4 - Terminal block seperators 2 - Terminal block connecting bridge pieces 1 - Wiring diagram with our recommended design View the wiring schematic HERE

Kit design for BCS 460. Features circuit structure to control 2 (upto 5500w) elements and one up to 1500w element, simultaneously, as well as 2 pumps. This panel is recommended for those who wish to build an HLT and Kettle with 240 elements, as well as run an RIMS unit in their process. Updated drawing as of 11/2014 View the wiring schematic HEREKit includes all pieces necessary to build a BCS 460 controlled electric panel with 3 elements of which 2 are 240v and 1 120v, operating 2 simultaneously, and 2 pumps. Kit includes: 12 - LEDs (4 white 220v, 2 white 110v, 4 yellow 110v, 2 blue 110v, 1 red 110v, and 1 green 220v) 1 - Emergency Stop locking push button with NC Contact 6 - 3-Way Switches with NO Contacts for element select and pumps (on-off-auto) 11 - Additional NO Contacts for back of 3 way switches 1 - Key toggle Switch for panel on/off 1 - 63a DIN Contactors w/ 110v Coils to control panel power 3 - 25a DIN Contactors w/ 110v Coils to control elements power 5 - 40a Solid State Relays for BCS control of elements and pumps 1 - Large Heatsink, drilled and tapped 1 meter of DIN rail, cut in either 1/3s (fits enclosure perfectly) or 1/2 30 - Terminal Blocks for wire from 6-24 awg 3 - New style 32a 2 pole DIN Rail Breaker 1 - Old style 16a 2 pole DIN Rail Breaker 1 - New style 6a 1 pole DIN Rail Breaker 8 - Terminal block anchoring ends 4 - Terminal block end covers 4 - Terminal block seperators 3 - Terminal block connecting bridge pieces 1 - Wiring diagram with our recommended design The panel as presently configured, WILL fit in a 16x16x8 control panel enclosure. Updated drawing as of 11/2014 View the wiring schematic HERE

Kit design for BCS Controlled, 2 burner gas brewery setup with 240v Electric RIMs mash temp control.Kit includes pieces the basic pieces to build an effective control panel for up to 3 Honeywell or similar gas valves in a gas brewery. Panel runs on a standard home 240v circuit. Kit includes: 12 - LEDs (2 white 110v, 2 white 24v, 1 white 240v, 3 yellow 110v, 2 blue 110v, 1 red 110v, and 1 green 110v) 1 - Emergency Stop locking push button with NC Contact 5 - 3-Way Switches with 2 NO Contact. For power to pumps 11 - Additional NO Contacts 1 - Key toggle Switch for panel on/off 1 - 63a DIN Rail mount Contactor for main power control 1 - 63a DIN Rail mount element cut off 1 - 4 relay, 10a SPDT relay boards for safe on/off control of gas valves, 12v coil 1 - 12v 1.25a DIN-Rail Power Supply for power for SPDT coils 1 - 120vac to 24vac power transformer for gas valve power 3 pcs - 1/3 meter cuts of DIN rail 15 - Terminal Blocks for wire from 6-24 awg 8 - Terminal block anchoring ends 4 - Terminal block end covers 4 - Terminal block seperators 2 - Terminal block connecting bridge pieces 1 - Wiring diagram with our recommended design View the wiring schematic HERE

Let us help you get started on you endeavor to build an electric brewery. As we build these as well, we have all the parts you need to build your brewery in one location. Give us a few days to assemble and package all the parts you need to build your own BCS brewery. Save yourself time and effort, while also reducing the tools needed to build your brewery. Usual lead time is 3-5 days, as each package is made to order Pictured 50a 2 element kit Let us help you get started. Build a complete 50a 4-element (1bbl) BCS control panel using our complete package.  Here we provide the parts you need to build an electric brewing panel from the box out. The resulting panel should be a near complete version of the panels we build and sell.  All the hardware and wire you may need to get your panel built. Some build pictures can be found on our Flickr Page   View the wiring schematic HERE The kit includes: Basic Kit Hardware 12 - LEDs (4 white 220v, 2 white 110v, 2 yellow 110v, 2 blue 110v, 1 red 110v, and 1 green 220v) 1 - Emergency Stop locking push button with NC Contact 5 - 3-Way Switches with NO Contacts for element select and pumps (on-off-auto) 5 - Additional NO Contacts for back of 3 way switches 1 - Key toggle Switch for panel on/off 5 - 63a DIN Contactors w/ 110v Coils for main power for element control 4 - 40a Solid State Relays for BCS control of elements 1 - 12v Power supply unit for SPDT Relay board 1 - Triple relay, SPDT Relay board for pumps and arlam 1 – Large pre-drilled and tapped heat sink for element SSRs 1 meter of DIN rail cut in 1/3m increments 30 - Terminal Blocks for wire from 6-24 awg 4 - New style 32a 2 pole DIN Rail Breaker 1 - New style 6a 1 pole DIN Rail Breaker 20 - Terminal block anchoring ends 8 - Terminal block end covers 6 - Terminal block separators 4 - Terminal block connecting bridge pieces Enclosure and outlets 1 – Enclosure 24w x 20t x 8d 4 – L6-30 Flanged outlets for elements 2 – L5-15 Flanged outlets for pumps 1 – C6375 flanged inlet for main power supply 2 – L5-15 plugs for pumps 1 – C6364C Connector for main power supply 4 – XLR Male connectors for temperature input 1 – Panel Network connector Tags for panel include: Power / Off-On Alarm / Off-On Stop Element Select / HLT-Off-Boil HLT Element / Auto-Off-On Boil Element / Auto-Off-On Water Pump / Auto-Off-On Wort Pump / Auto-Off-On 2 - HLT 2 - Boil Water Pump Wort Pump HLT Probe MASH Probe Boil Probe KO Probe 240v / 50a 120v / 6a BCS Controller and temperature probes BCS 460 Temperature Control Unit DIN Rail Outlet 4 - 4 inch or 6 inch Temperature Probes 4 - 1/4" inch to 1/2" inch MNPT Compression fittings 4 - 1/2" inch Locknuts 4 - 1/2" inch washer and o-rings 4 – XLR Female connectors for temperature probes 30 ft of 1/8 inch braided poly sleeve for temperature probes 4 cuts of 3 1/8 inch heat shrink tubing for temperature probes M12 probes will ship with M12 connector on the probe end, and a bare end for XLR on the other end Wiring and wire fittings 6 ft Range style main power cable 25 ft of black 10 gauge wire 25 ft of red 10 gauge wire 25 ft of green 10 gauge wire 60 ft of black 14 gauge wire 20 ft of white 14 gauge wire 10 ft of red 18 gauge wire 10 ft of blue 18 gauge wire 10 ft of purple 18 gauge wire 4 ft of gray 18 gauge wire 4 ft of tan 18 gauge wire 36 ft of yellow 18 gauge wire 36 ft of orange 18 gauge wire 20 ft of white 18 gauge wire 10 - #10 Yellow Spade connectors for 10ga wire connections on SSR relays 100 - #6 Blue Spade Connectors for most 110v wiring throughout the panel 50 - #6 Red spade connectors for the low voltage and temp probe wiring 5 - #10 Blue ring connectors for grounding wire on enclosure posts *** BCS Temperature Controller Options*** BCS460 with upto 4 temperature inputs BCS462 with upto 8 temperature inputs *** Enclosure Information *** Painted Enclosure is included. The included enclosures has no cuts made to the box requiring and therefore allowing you to design and build your system to your preference. Pre-cut Painted Enclosures uses our current Assembled enclosure layout, is CNC cut out of the painted box and then we drill and tap all necessary holes for easy hardware mounting. The paint on the enclosure is likely to have some marks and may even be loose at some edges; we highly recommend you plan on sanding and painting with your choice of paint. Stainless enclosure. Same as the standard painted option, but instead we send a 304 Stainless enclosure.   Pre-cut Stainless enclosure is the equivalent of an enclosure straight from our cut stack for the assembled panels, these are cut, cleaned, drilled and tapped. All kits include a printed copy of our wiring guide book.   Tools you will need include: Wire Cutters Wire strippers Crimping tools for spade and ring connectors Phillips screw driver(s) Flat head screw driver(s) Zip ties and zip tie bases (optional) Labeler or other means to tag wires If you are cutting your control panel 7/8" Hole saw or step bit for LEDs and switches 3/4" hole saw for XLR panel connectors 1-1/2" hole saw for flanged pump outlets 2-1/8" hole saw for flanged element outlets Dremel or other rotary tool for cutting network panel inlet Sand paper and paint recommended for painted enclosures. Scotch Bright scrubbers work well for smoothing and cleaning the stainless.
